To
be honest, I'm not very enamored with the term "best
practice". I believe that the term "contextual
practice" makes far more sense because what is
a "best practice" in some situations proves
to be a "worst practice" in others. Having
said that, people are interested in best practices so
here they are when it comes to agile requirements modeling:
- Stakeholders
actively participate
- Adopt inclusive models
- Take a breadth-first
approach
- Model storm details just in
time (JIT)
- Treat requirements like
a prioritized stack
- Prefer executable
requirements over static documentation
- Your goal is to
implement requirements, not document them

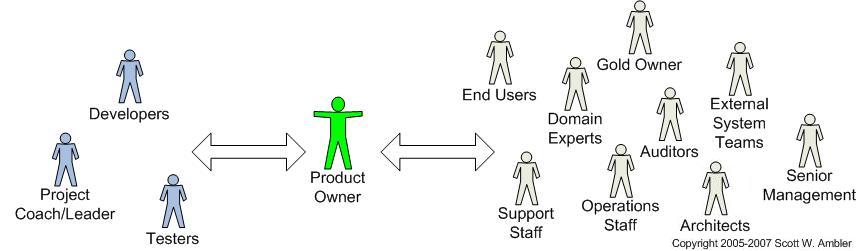

- Recognize that
you have a wide range of stakeholders
- Create
platform independent requirements to a point
- Smaller is better
- Question traceability
- Explain the techniques
- Adopt stakeholder
terminology
- Keep it fun
- Obtain management
support
- Turn stakeholders
into developers
When you are requirements modeling
the critical practice is
Active Stakeholder Participation. There are
two issues that need to be addressed to enable this
practice ?availability of project stakeholders to provide
requirements and their (and your) willingness to actively
model together. My experience is that when a project
team doesn抰 have adequate access to project stakeholders
that this is by choice. You have funding for your
project, don抰 you? That must have come from some
form of project stakeholder, so they clearly exist.
Users must also exist, or at least potential users if
you抮e building a system you intend to provide to the
public, so there clearly is someone that you could talk
to. Yes, it may be difficult to find these people.
Yes, it may be difficult to get them to participate.
Deal with it. In the Overcoming
Common Requirements Challenges section I discuss
several common problems that development teams often
face, including not having full access to project stakeholders.
My philosophy is that if your project stakeholders are
unable or unwilling to participate then that is a clear
indication that your project does not have the internal
support that it needs to succeed, therefore you should
either address the problem or cancel your project to
minimize your losses.
Active Stakeholder Participation is a core practice
of Agile Modeling (AM).
What does it mean for a project stakeholder to actively
participate? Figure
1 presents a high-level view of the requirements process,
using the notation for
UML activity diagrams, indicating the tasks that developers
and project stakeholders are involved with. The
dashed line is used to separate the effort into swim lanes
that indicate what role is responsible for each process.
In this case you see that both project stakeholders and
developers are involved with identifying ideas or suggestions,
discussing a potential requirement, and then modeling
and potentially documenting it. Project stakeholders
are solely responsible for
prioritizing requirements, the system is being built
for them therefore they are the ones that should set the
priorities. Likewise, developers are responsible
for
estimating the effort to implement a requirement because
they are the ones that will be doing the actual work ?
it isn抰 fair, nor advisable, to impose external estimates
on developers. Although prioritization and estimation
of requirements is outside the scope of AM, it is however
within the scope of the underlying process such as XP
or UP that you are applying AM within, it is important
to understand that these tasks are critical aspects of
your overall requirements engineering effort. For
further reading, see the
Agile Requirements Change Management article.

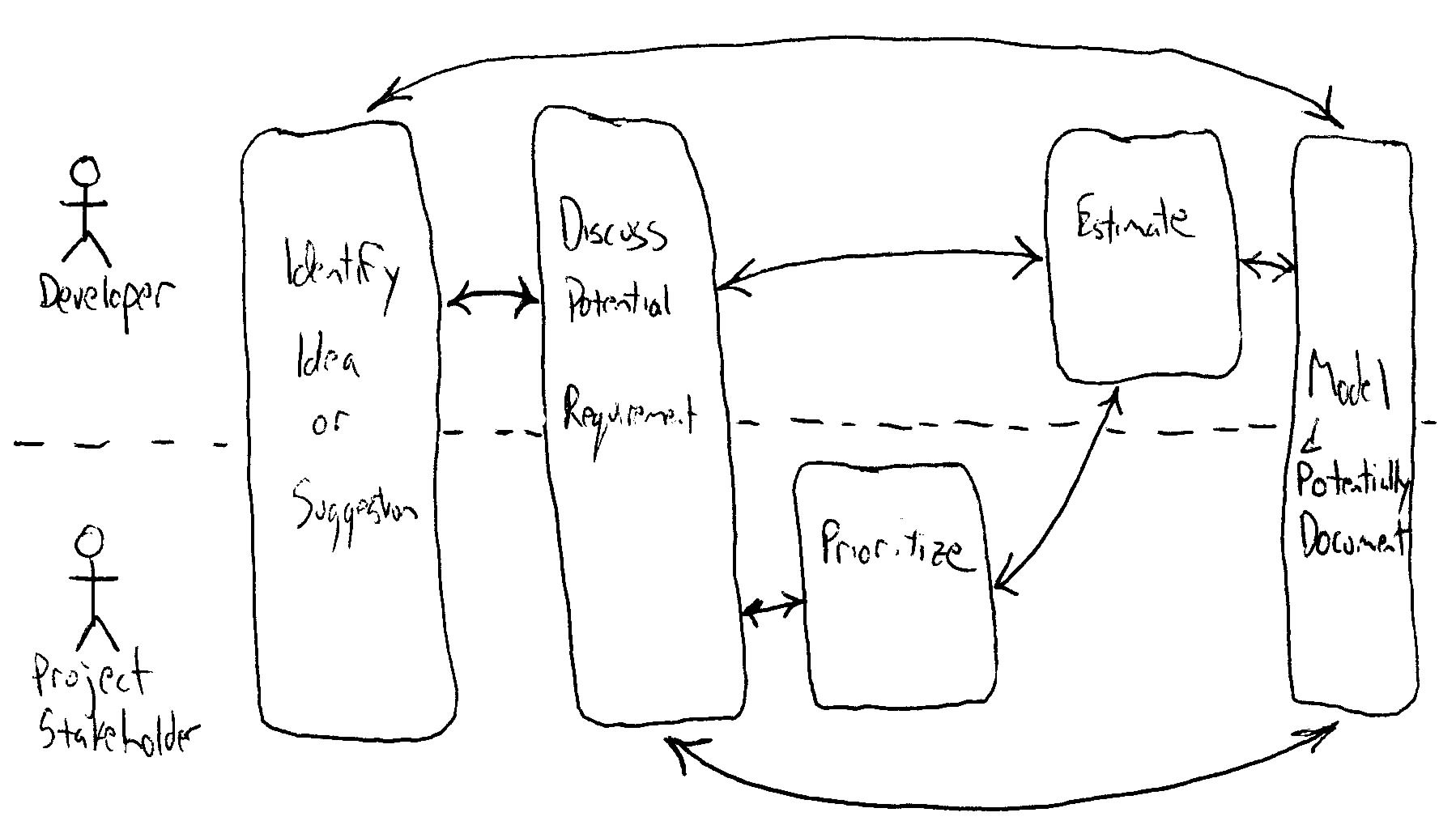

Figure 1.
A UML activity diagram overviewing the requirements
engineering process.
My philosophy is that project stakeholders
should be involved with modeling and
documenting their requirements, not only do they
provide information but they actively do the work as
well. Yes, this requires some training, mentoring,
and coaching by developers but it is possible.
I have seen project stakeholders model and document
their requirements quite effectively in small start-up
firms, large corporations, and government agencies.
I抳e seen it in the telecommunications industry, in the
financial industry, in manufacturing, and in the military.
Why is this important? Because your project stakeholders
are the requirements experts. They are the ones
that know what they want and they can be taught how
to model and document requirements if you choose to
do so. This makes sense from an agile point of
view because it distributes the modeling effort to more
people.
To make it easier for project stakeholders
to be actively involved with requirements modeling and
documentation, to reduce the barriers to entry in business
parlance, you want to follow the practice
Use the Simplest Tools. Many of the requirements
artifacts listed in Table
1 below can be modeled using either simple or complex
tools ?a column is included to list a simple tool for
each artifact. Figure
2 and Figure
3 present two
inclusive models created using simple tools, Post
It notes and flip chart paper was used to model the
requirements for a screen/page in
Figure 2 (an
essential UI prototype) and index cards were used
for conceptual modeling in Figure
3 (a
CRC model). Whenever you bring technology
into the requirements modeling effort, such as a drawing
tool to create 揷lean?versions of use case diagrams or
a full-fledged CASE tool, you make it harder for your
project stakeholders to participate because they now
need to not only learn the modeling techniques but also
the modeling tools. By keeping it simply you encourage
participation and thus increase the chances of effective
collaboration.
Figure 2. An essential user interface prototype.
Figure
3. Two CRC cards.
My experience is that it is better
to paint a
wide swath at first, to try to get a feel for the
bigger picture, than it is to narrowly focus on one
small aspect of your system. By taking a breadth-first
approach you quickly gain an overall understanding of
your system and can still dive into the details when
appropriate.
Many organizations prefer a "big
modeling up front (BMUF)" approach to modeling
where you invest significant time gathering and documenting
requirements early in the project, review the requirements,
accept and then baseline them before implementation
commences. This sounds like a great idea, in theory,
but the reality is that this approach is spectacularly
ineffective. A 2001 study performed by M. Thomas
in the U.K. of 1,027 projects showed that scope management
related to attempting waterfall practices, including
detailed, up-front requirements, was cited by 82 percent
of failed projects as the number one cause of failure.
This is backed up by other research ?according to Jim
Johnson of the Standish Group when requirements are
specified early in the lifecycle that 80% of the functionality
is relatively unwanted by the users. He
reports that 45% of features are never used, 19%
are rarely used, and 16% are sometimes used. Why
does this happen? Two reasons:
-
When project stakeholders are
told that they need to get all of their requirements
down on paper early in the project, they desperately
try to define as many potential requirements (things
they might need but really aren't sure about right
now) as they can. They know if they don't
do it now then it will be too hard to get them added
later because of the
change management/prevention process which will
be put in place once the requirements document is
baselined.
-
Things change between the time
the requirements are defined and when the software
is actually delivered.
The point is that you can do a little
bit of initial, high-level
requirements envisioning up front early in the project
to understand the overall scope of your system without
having to invest in mounds of documentation.
| |
| Through initial, high-level
modeling you can gain the knowledge that
you need to guide the project but choose
to wait to act on it. |
|
Requirements are identified throughout
most of your project. Although the majority of
your requirements efforts are performed at the beginning
your project it is very likely that you will still be
working them just before you final code freeze before
deployment. Remember the principle
Embrace Change. Agilists take an evolutionary,
iterative and incremental, approach to development.
The implication is that you need to gather requirements
in exactly the same manner. Luckily AM includes
practices such as
Create Several Models in Parallel,
Iterate To Another Artifact, and
Model In Small Increments which enable evolutionary
modeling.
| |
| The shorter the feedback
cycle between model storming a requirement
and implementing it, the less need there
is for documenting the details. |
|
Figure
4 overviews the
agile approach to managing requirements, reflecting
both
Extreme Programming (XP)抯 planning game and the
Scrum
methodology. Your software development team has
a stack of
prioritized and
estimated requirements which needs to be implemented
?XPers will literally have a stack of user stories written
on index cards. The team takes the highest
priority requirements from the top of the stack which
they believe they can implement within the current iteration.
Scrum suggests that you freeze the requirements
for the current iteration to provide a level of stability
for the developers. If you do this then any change
to a requirement you抮e currently implementing should
be treated as just another new requirement.

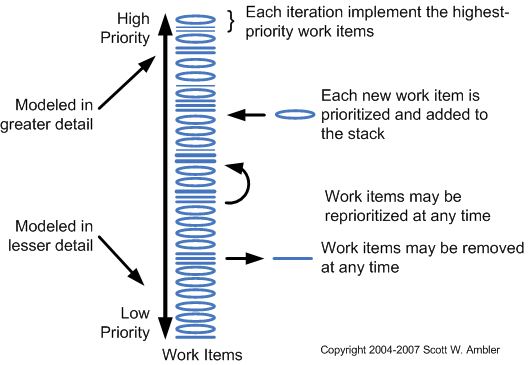

Figure 4. Agile
requirements change management process.
During development it is quite common
to model
storm for several minutes and then code, following
common Agile practices such as
Test-First Design (TFD) and
refactoring, for several hours and even several
days at a time to implement what you've just modeled.
This is where your team will spend the majority of its
time. Agile teams do the majority of their
detailed modeling in the form of
executable specifications, often
customer tests or development tests.
Why does this work? Because your model storming
efforts enable you to think through larger, cross-entity
issues whereas with TDD you think through very focused
issues typically pertinent to a single entity at a time.
With refactoring you evolve your design via small steps
to ensure that your work remains of high quality.
TDD promotes confirmatory testing
of your application code and detailed specification
of that code. Customer tests, also called agile
acceptance tests, can be thought of as a form of
detailed
requirements and developer tests as detailed
design. Having tests do 揹ouble duty? like
this is a perfect example of
single sourcing information, a practice which enables
developers to travel light and reduce overall
documentation. However, detailed specification
is only part of the overall picture ? high-level specification
is also critical to your success, when it抯 done effectively.
This is why we need to go beyond TDD to consider AMDD.
Too many projects are crushed by
the overhead required to develop and maintain comprehensive
documentation and traceability between it. Take
an
agile approach to documentation and keep it lean
and effective. The most effective documentation
is
just barely good enough for the job at hand.
By doing this, you can focus more of your energy on
building working software, and isn't that what you're
really being paid to do?
| |
| The urge
to write requirements documentation should
be transformed into an urge to instead collaborate
closely with your stakeholders and then
create working software based on what they
tell you. |
|
End users, either direct or indirect,
aren't your only stakeholders. Other stakeholders
include managers of users, senior managers, operations
staff members, the "gold owner" who funds
the project, support (help desk) staff members, auditors,
your program/portfolio manager, developers working on
other systems that integrate or interact with the one
under development, or maintenance professionals potentially
affected by the development and/or deployment of a software
project. To name a few. These people
aren't going to agree with one another, they're going
to have different opinions, priorities, understandings
of what they do, understandings of what others do, and
visions for what the system should (or shouldn't) do.
The implication is that you're going to need to recognize
that you're in this situation and then act accordingly.
Figure 5 shows how agile teams
typically have someone in a stakeholder representative
role, this role is called Product Owner in Scrum, whom
they go to as the official source of information and
prioritization decisions. This works well for
the development team, but essentially places the burden
on the shoulders of this person. Anyone in this
role will need to:
-
Have solid
business analysis skills, particularly in negotiation,
diplomacy, and requirements elicitation.
-
Educate the team in the complexity
of their role.
-
Be prepared to work with other product
owners who are representing the stakeholder community
on other development teams. This is particularly
true at
scale with large agile teams.
-
Recognize that they are not an expert
at all aspects of the domain. Therefore, they
will need to have good contacts within the stakeholder
community and be prepared to put the development
team in touch with the appropriate domain experts
on an as-needed basis so that they can share their
domain expertise with the team.
Figure 5. You'll work with
a range of stakeholders.
I抦 a firm believer that requirements
should be technology independent. I cringe when
I hear terms such as object-oriented (OO) requirements,
structured requirements, or component-based requirements.
The terms OO, structured, and component-based are all
categories of implementation technologies, and although
you may choose to constrain yourself to technology that
falls within one of those categories the bottom line
is that you should just be concerned about requirements.
That抯 it, just requirements. All of the techniques
that I describe below can be used to model the requirements
for a system using any one (or more) of these categories.
However, I also cringe when I hear
about people talk about Platform Independent Models
(PIMs), part of the doomed
Model Driven Architecture (MDA) vision from the
Object Management Group (OMG). Few organizations
are ready for the MDA, so my advice is to not let
the MDA foolishness distract you from becoming effective
at requirements modeling.
Sometimes you must go away from the
ideal of identifying technology-independent requirements.
For example, a common constraint for most projects is
to take advantage of the existing technical infrastructure
wherever possible. At this level the requirement
is still technology independent, but if you drill down
into it to start listing the components of the existing
infrastructure, such as your Sybase vX.Y.Z database
or then need to integrate with a given module of SAP
R/3, then you've crossed the line. This is okay
as long as you know that you are doing so and don't
do so very often.
Remember to think small. Smaller requirements, such
as features and user stories, are much easier to
estimate and to build to than are larger requirements,
such as use cases. An average use case describes
greater functionality than the average user story and
is thus considered 搇arger? They're also easier to
prioritize and therefore
manage.
Also, think very carefully before
investing in a requirements traceability matrix.
Traceability is the ability to relate aspects of project
artifacts to one another, and a requirements traceability
matrix is the artifact that is often created to record
these relations ?it starts with your individual requirements
and traces them through any analysis models, architecture
models, design models, source code, or test cases that
you maintain.
My experience is that organizations
with traceability cultures will often choose to update
artifacts regularly, ignoring the practice
Update Only When it Hurts, so as to achieve consistency
between the artifacts (including the matrix) that they
maintain. They also have a tendency to capture
the same information in several places, often because
they employ overly specialized people who "hand
off" artifacts to other specialists in a well-defined,
Tayloristic process. This is not traveling light. A
better approach is to
single source information and to build teams of
generalizing specialists.
The benefits of having such a matrix
is that it makes it easier to perform an impact analysis
pertaining to a changed requirement because you know
what aspects of your system will be potentially affected
by the change. However, if you have one or more
people familiar with the system, which you want to have
anyway if you want to be effective at enhancing the
system, then it is much easier and cheaper to simply
ask them to estimate the change. My experience
is that traceability matrices are highly overrated because
the total cost of ownership (TCO) to maintain such matrices,
even if you have specific tools to do so, far outweigh
the benefits. Make your project stakeholders
aware of the real costs and benefits and let them decide
?after all, a traceability matrix is effectively a document
and is therefore a business decision to be made by them.
If you accept the AM principle
Maximize Stakeholder ROI, if you're honest about
the TCO of traceability matrices, and if you adopt tools
which automatically provide most of your traceability
needs anyway then formal traceability truly becomes
questionable.
I'm a firm believer in traceability
if you have actual regulatory compliance needs, for
example the
Food and Drug Administration's CFR 21 Part 11 regulations
requires it, then clearly you need to conform to those
regulations. I question traceability which is
solely motivated by "it's a really good idea",
"we need to justify the existence of people on
the CCB" (it's rarely worded like that, but that's
the gist of it), or "CMMI's Requirements Management
process area requires it". In reality there's
lots of really good ideas out there with much better
ROI, surely the CCB members could find something more
useful to do, and there aren't any CMMI police so don't
worry about it. In short, just like any other
type of work product, you should have to
justify the creation of a traceability matrix.
| |
| It's requirements analysis,
not retentive analysis. ;-) |
|
Everyone should have a basic understanding
of a modeling technique, including your project stakeholders.
They抳e never seen CRC cards before? Take a few
minutes to explain what they are, why you are using
them, and how to create them. You cannot follow
the practice
Active Stakeholder Participation if your stakeholders
are unable to work with the appropriate modeling techniques.
Do not force artificial, technical
jargon onto your project stakeholders. They are
the ones that the system is being built for, therefore,
it is their terminology that you should use to model
the system. As
Constantine and Lockwood say, avoid geek-speak.
An important artifact on many projects is a
concise glossary of business terms.
Modeling doesn抰 have to be an arduous
task. In fact, you can always have fun doing it.
Tell a few jokes, and keep your modeling efforts light.
People will have a better time and will be more productive
in a 揻un?environment.
Investing the effort to model requirements,
and in particular applying
agile usage-centered design techniques, are new
concepts to many organizations. An important issue
is that your project stakeholders are actively involved
in the modeling effort, a fundamental culture change
for most organizations. As with any culture change,
without the support of senior management you likely
will not be successful. You will need support
from both the managers within you IS (information system)
department and within the user area.
An implication of this approach is
that your project stakeholders are learning fundamental
development skills when they are actively involved with
a software project. It is quite common to see
users make the jump from the business world to the technical
world by first becoming a
business analyst and then learning further development
skills to eventually become a full-fledged developer.
My expectation is that because agile software development
efforts have a greater emphasis on stakeholder involvement
than previous software development philosophies we will
see this phenomena occur more often ?keep a look out
for people wishing to make this transition and help
to nurture their budding development skills. You
never know, maybe some day someone will help nurture
your business skills and help you to make the jump out
of the technical world. |
