<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:background="#ffffffff"
    >
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="horizontal"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:gravity="center"

    >

<Button
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:id="@+id/btnReset"
    android:text="Reset"
    android:visibility="visible"
    android:onClick="onResetImage"
/>
<Button
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:id="@+id/btnConvert"
    android:text="Convert Image"
    android:visibility="visible"
    android:onClick="onConvertToGray"
/>
<Button
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:id="@+id/btnFindEdges"
    android:text="Find Edges"
    android:visibility="visible"
    android:onClick="onFindEdges"
/>
<Button
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:id="@+id/btnDimmer"
    android:text="- "
    android:visibility="visible"
    android:onClick="onDimmer"
/>
<Button
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:id="@+id/btnBrighter"
    android:text=" +"
    android:visibility="visible"
    android:onClick="onBrighter"
/>
</LinearLayout>
<ImageView
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:scaleType="centerCrop"
    android:layout_gravity="center_vertical|center_horizontal"
    android:id="@+id/ivDisplay"
/>
</LinearLayout>

/*
 * IBMPhotoPhun.java
 *
 * Author: Frank Ableson
 * Contact Info: fableson@navitend.com
 */

package com.msi.ibm.ndk;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;
import android.graphics.BitmapFactory;
import android.graphics.Bitmap;
import android.graphics.Bitmap.Config;
import android.view.View;
import android.widget.ImageView;

public class IBMPhotoPhun extends Activity {
private String tag = "IBMPhotoPhun";
private Bitmap bitmapOrig = null;
private Bitmap bitmapGray = null;
private Bitmap bitmapWip = null;
private ImageView ivDisplay = null;



// NDK STUFF
static {
System.loadLibrary("ibmphotophun");
}
public native void convertToGray(Bitmap bitmapIn,Bitmap bitmapOut);
public native void changeBrightness(int direction,Bitmap bitmap);
public native void findEdges(Bitmap bitmapIn,Bitmap bitmapOut);
// END NDK STUFF



/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
Log.i(tag,"before image stuff");
ivDisplay = (ImageView) findViewById(R.id.ivDisplay);


// load bitmap from resources
BitmapFactory.Options options = new BitmapFactory.Options();
// Make sure it is 24 bit color as our image processing algorithm
// expects this format
options.inPreferredConfig = Config.ARGB_8888;
bitmapOrig = BitmapFactory.decodeResource(this.getResources(),
R.drawable.sampleimage,options);
if (bitmapOrig != null)
ivDisplay.setImageBitmap(bitmapOrig);

}

public void onResetImage(View v) {
Log.i(tag,"onResetImage");

ivDisplay.setImageBitmap(bitmapOrig);

}

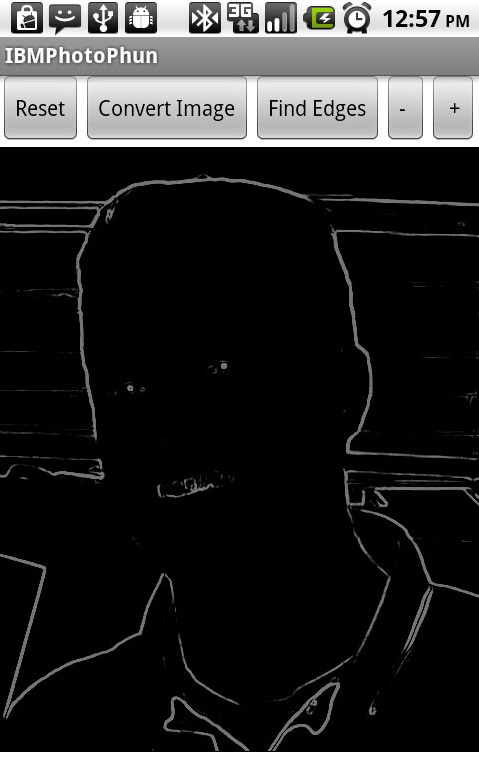

public void onFindEdges(View v) {
Log.i(tag,"onFindEdges");

// make sure our target bitmaps are happy
bitmapGray = Bitmap.createBitmap(bitmapOrig.getWidth(),bitmapOrig.getHeight(),
Config.ALPHA_8);
bitmapWip = Bitmap.createBitmap(bitmapOrig.getWidth(),bitmapOrig.getHeight(),
Config.ALPHA_8);
// before finding edges, we need to convert this image to gray
convertToGray(bitmapOrig,bitmapGray);
// find edges in the image
findEdges(bitmapGray,bitmapWip);
ivDisplay.setImageBitmap(bitmapWip);

}

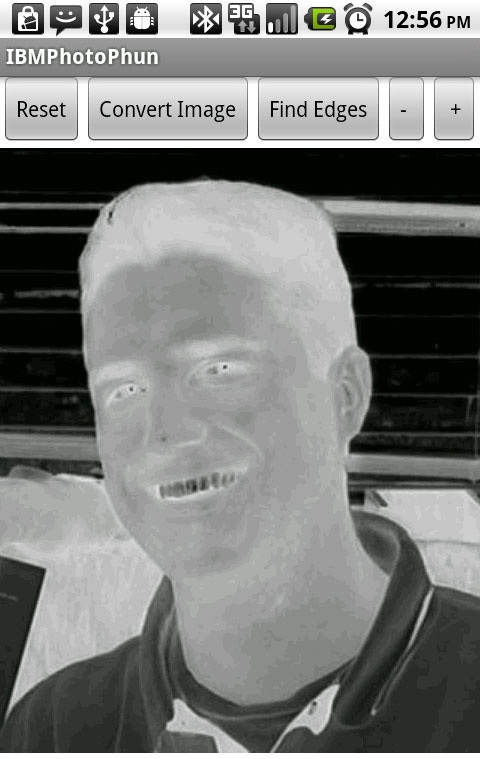

public void onConvertToGray(View v) {
Log.i(tag,"onConvertToGray");

bitmapWip = Bitmap.createBitmap(bitmapOrig.getWidth(),bitmapOrig.getHeight(),
Config.ALPHA_8);
convertToGray(bitmapOrig,bitmapWip);
ivDisplay.setImageBitmap(bitmapWip);
}

public void onDimmer(View v) {
Log.i(tag,"onDimmer");

changeBrightness(2,bitmapWip);
ivDisplay.setImageBitmap(bitmapWip);
}
public void onBrighter(View v) {
Log.i(tag,"onBrighter");

changeBrightness(1,bitmapWip);
ivDisplay.setImageBitmap(bitmapWip);
}
}

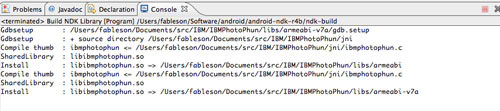

LOCAL_PATH := $(call my-dir)
include $(CLEAR_VARS)
LOCAL_MODULE    := ibmphotophun
LOCAL_SRC_FILES := ibmphotophun.c
LOCAL_LDLIBS    := -llog -ljnigraphics
include $(BUILD_SHARED_LIBRARY)

/*
 * ibmphotophun.c
 *
 * Author: Frank Ableson
 * Contact Info: fableson@msiservices.com
 */

#include <jni.h>
#include <android/log.h>
#include <android/bitmap.h>

#define LOG_TAG "libibmphotophun"
#define LOGI(...) __android_log_print(ANDROID_LOG_INFO,LOG_TAG,__VA_ARGS__)
#define LOGE(...) __android_log_print(ANDROID_LOG_ERROR,LOG_TAG,__VA_ARGS__)

typedef struct
{
uint8_t alpha;
uint8_t red;
uint8_t green;
uint8_t blue;
} argb;

/*
convertToGray
Pixel operation
*/
JNIEXPORT void JNICALL Java_com_msi_ibm_ndk_IBMPhotoPhun_convertToGray(JNIEnv
* env, jobject  obj, jobject bitmapcolor,jobject bitmapgray)
{
    AndroidBitmapInfo  infocolor;
    void*              pixelscolor;
    AndroidBitmapInfo  infogray;
    void*              pixelsgray;
    int                ret;
    int             y;
    int             x;

LOGI("convertToGray");
if ((ret = AndroidBitmap_getInfo(env, bitmapcolor, &infocolor)) < 0) {
LOGE("AndroidBitmap_getInfo() failed ! error=%d", ret);
return;
}

if ((ret = AndroidBitmap_getInfo(env, bitmapgray, &infogray)) < 0) {
LOGE("AndroidBitmap_getInfo() failed ! error=%d", ret);
return;
}

LOGI("color image :: width is %d; height is %d; stride is %d; format is %d;flags is
%d",infocolor.width,infocolor.height,infocolor.stride,infocolor.format,infocolor.flags);
if (infocolor.format != ANDROID_BITMAP_FORMAT_RGBA_8888) {
LOGE("Bitmap format is not RGBA_8888 !");
return;
}

LOGI("gray image :: width is %d; height is %d; stride is %d; format is %d;flags is
%d",infogray.width,infogray.height,infogray.stride,infogray.format,infogray.flags);
if (infogray.format != ANDROID_BITMAP_FORMAT_A_8) {
LOGE("Bitmap format is not A_8 !");
return;
}


if ((ret = AndroidBitmap_lockPixels(env, bitmapcolor, &pixelscolor)) < 0) {
LOGE("AndroidBitmap_lockPixels() failed ! error=%d", ret);
}

if ((ret = AndroidBitmap_lockPixels(env, bitmapgray, &pixelsgray)) < 0) {
LOGE("AndroidBitmap_lockPixels() failed ! error=%d", ret);
}

// modify pixels with image processing algorithm

for (y=0;y<infocolor.height;y++) {
argb * line = (argb *) pixelscolor;
uint8_t * grayline = (uint8_t *) pixelsgray;
for (x=0;x<infocolor.width;x++) {
grayline[x] = 0.3 * line[x].red + 0.59 * line[x].green + 0.11*line[x].blue;
}

pixelscolor = (char *)pixelscolor + infocolor.stride;
pixelsgray = (char *) pixelsgray + infogray.stride;
}

LOGI("unlocking pixels");
AndroidBitmap_unlockPixels(env, bitmapcolor);
AndroidBitmap_unlockPixels(env, bitmapgray);

}

/*
changeBrightness
Pixel Operation
*/
JNIEXPORT void JNICALL Java_com_msi_ibm_ndk_IBMPhotoPhun_changeBrightness(JNIEnv
* env, jobject  obj, int direction,jobject bitmap)
{
    AndroidBitmapInfo  infogray;
    void*              pixelsgray;
    int                ret;
    int             y;
    int             x;
    uint8_t save;

if ((ret = AndroidBitmap_getInfo(env, bitmap, &infogray)) < 0) {
LOGE("AndroidBitmap_getInfo() failed ! error=%d", ret);
return;
}

LOGI("gray image :: width is %d; height is %d; stride is %d; format is %d;flags is
%d",infogray.width,infogray.height,infogray.stride,infogray.format,infogray.flags);
if (infogray.format != ANDROID_BITMAP_FORMAT_A_8) {
LOGE("Bitmap format is not A_8 !");
return;
}


if ((ret = AndroidBitmap_lockPixels(env, bitmap, &pixelsgray)) < 0) {
LOGE("AndroidBitmap_lockPixels() failed ! error=%d", ret);
}

// modify pixels with image processing algorithm


LOGI("time to modify pixels....");
for (y=0;y<infogray.height;y++) {
uint8_t * grayline = (uint8_t *) pixelsgray;
int v;
for (x=0;x<infogray.width;x++) {
v = (int) grayline[x];

if (direction == 1)
v -=5;
else
v += 5;
if (v >= 255) {
grayline[x] = 255;
} else if (v <= 0) {
grayline[x] = 0;
} else {
grayline[x] = (uint8_t) v;
}
}

pixelsgray = (char *) pixelsgray + infogray.stride;
}

AndroidBitmap_unlockPixels(env, bitmap);

}

/*

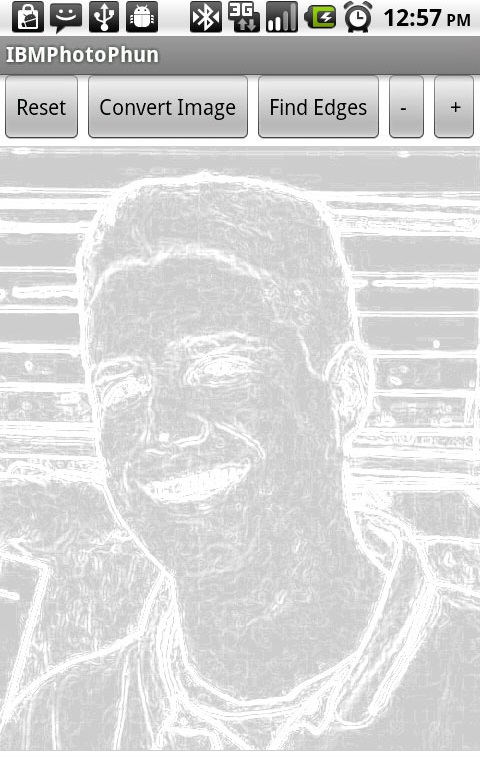

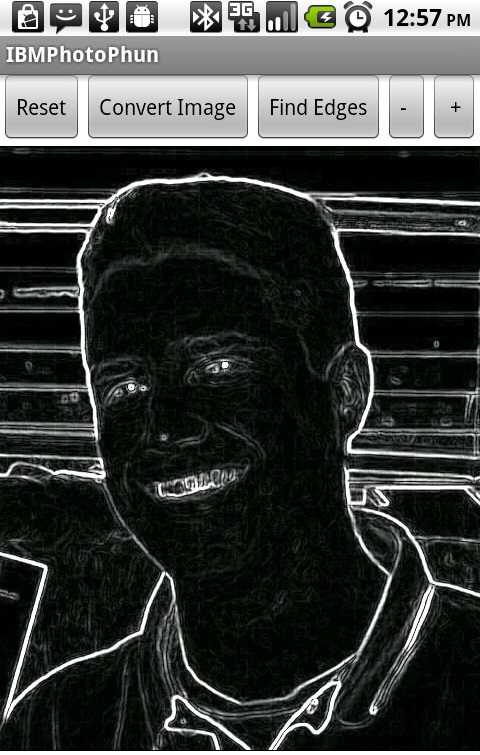

findEdges
Matrix operation
*/
JNIEXPORT void JNICALL Java_com_msi_ibm_ndk_IBMPhotoPhun_findEdges(JNIEnv
* env, jobject  obj, jobject bitmapgray,jobject bitmapedges)
{
    AndroidBitmapInfo  infogray;
    void*              pixelsgray;
    AndroidBitmapInfo  infoedges;
    void*              pixelsedge;
    int                ret;
    int             y;
    int             x;
    int             sumX,sumY,sum;
    int             i,j;
    int                Gx[3][3];
    int                Gy[3][3];
    uint8_t            *graydata;
    uint8_t            *edgedata;


LOGI("findEdges running");

Gx[0][0] = -1;Gx[0][1] = 0;Gx[0][2] = 1;
Gx[1][0] = -2;Gx[1][1] = 0;Gx[1][2] = 2;
Gx[2][0] = -1;Gx[2][1] = 0;Gx[2][2] = 1;



Gy[0][0] = 1;Gy[0][1] = 2;Gy[0][2] = 1;
Gy[1][0] = 0;Gy[1][1] = 0;Gy[1][2] = 0;
Gy[2][0] = -1;Gy[2][1] = -2;Gy[2][2] = -1;

if ((ret = AndroidBitmap_getInfo(env, bitmapgray, &infogray)) < 0) {
LOGE("AndroidBitmap_getInfo() failed ! error=%d", ret);
return;
}

if ((ret = AndroidBitmap_getInfo(env, bitmapedges, &infoedges)) < 0) {
LOGE("AndroidBitmap_getInfo() failed ! error=%d", ret);
return;
}

LOGI("gray image :: width is %d; height is %d; stride is %d; format is %d;flags is
%d",infogray.width,infogray.height,infogray.stride,infogray.format,infogray.flags);
if (infogray.format != ANDROID_BITMAP_FORMAT_A_8) {
LOGE("Bitmap format is not A_8 !");
return;
}

LOGI("color image :: width is %d; height is %d; stride is %d; format is %d;flags is
%d",infoedges.width,infoedges.height,infoedges.stride,infoedges.format,infoedges.flags);
if (infoedges.format != ANDROID_BITMAP_FORMAT_A_8) {
LOGE("Bitmap format is not A_8 !");
return;
}

if ((ret = AndroidBitmap_lockPixels(env, bitmapgray, &pixelsgray)) < 0) {
LOGE("AndroidBitmap_lockPixels() failed ! error=%d", ret);
}

if ((ret = AndroidBitmap_lockPixels(env, bitmapedges, &pixelsedge)) < 0) {
LOGE("AndroidBitmap_lockPixels() failed ! error=%d", ret);
}

// modify pixels with image processing algorithm


LOGI("time to modify pixels....");

graydata = (uint8_t *) pixelsgray;
edgedata = (uint8_t *) pixelsedge;

for (y=0;y<=infogray.height - 1;y++) {
for (x=0;x<infogray.width -1;x++) {
sumX = 0;
sumY = 0;
// check boundaries
if (y==0 || y == infogray.height-1) {
sum = 0;
} else if (x == 0 || x == infogray.width -1) {
sum = 0;
} else {
// calc X gradient
for (i=-1;i<=1;i++) {
for (j=-1;j<=1;j++) {
sumX += (int) ( (*(graydata + x + i + (y + j)
* infogray.stride)) * Gx[i+1][j+1]);
}
}

// calc Y gradient
for (i=-1;i<=1;i++) {
for (j=-1;j<=1;j++) {
sumY += (int) ( (*(graydata + x + i + (y + j)
* infogray.stride)) * Gy[i+1][j+1]);
}
}

sum = abs(sumX) + abs(sumY);

}

if (sum>255) sum = 255;
if (sum<0) sum = 0;

*(edgedata + x + y*infogray.width) = 255 - (uint8_t) sum;



}
}

AndroidBitmap_unlockPixels(env, bitmapgray);
AndroidBitmap_unlockPixels(env, bitmapedges);

}
