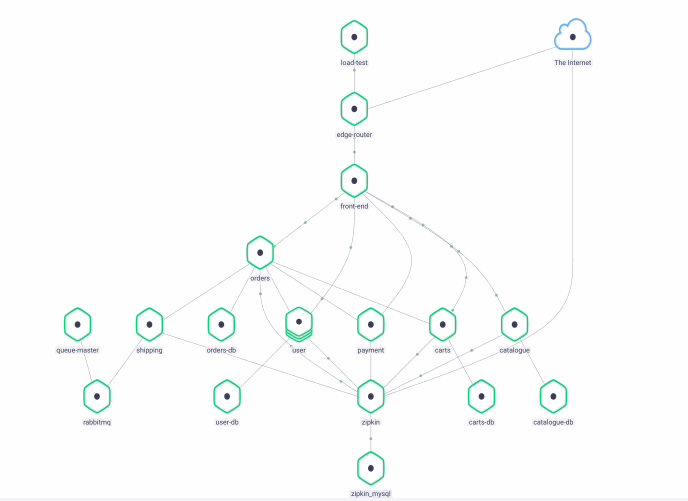

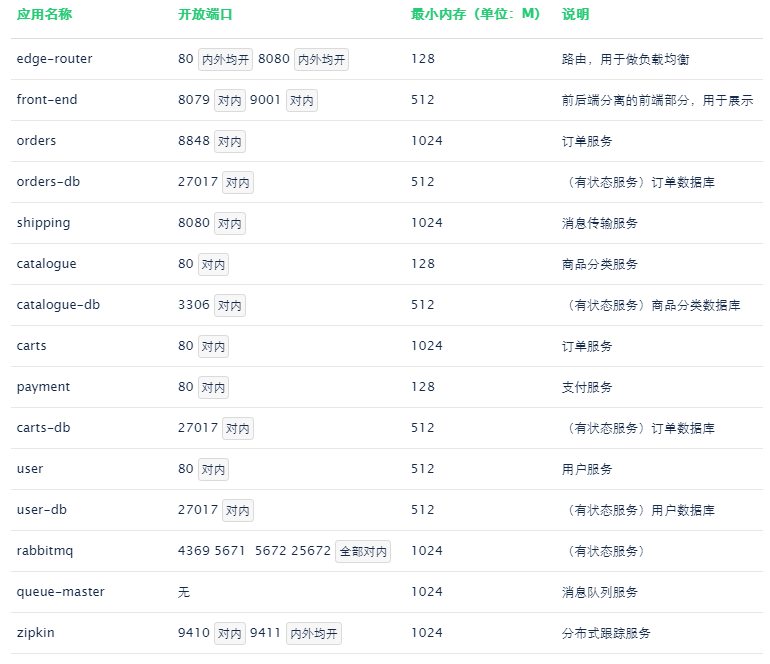

services:
front-end:
image: weaveworksdemos/front-end:0.3.12
hostname: front-end
restart: always
cap_drop:
- all
ports:
- "8079:8079"
- "9001:9001"
depends_on:
- catalogue
- carts
- payment
- user
- orders
edge-router:
image: weaveworksdemos/edge-router:0.1.1
ports:
- '80:80'
- '8080:8080'
cap_drop:
- all
cap_add:
- NET_BIND_SERVICE
- CHOWN
- SETGID
- SETUID
- DAC_OVERRIDE
tmpfs:
- /var/run:rw,noexec,nosuid
hostname: edge-router
restart: always
depends_on:
- front-end
catalogue:
image: weaveworksdemos/catalogue:0.3.5
hostname: catalogue
restart: always
cap_drop:
- all
cap_add:
- NET_BIND_SERVICE
depends_on:
- catalogue-db
- zipkin
catalogue-db:
image: rilweic/catalog-db
hostname: catalogue-db
restart: always
environment:
- MYSQL_ROOT_PASSWORD=${MYSQL_ROOT_PASSWORD}
- MYSQL_ALLOW_EMPTY_PASSWORD=true
- MYSQL_DATABASE=socksdb
carts:
image: weaveworksdemos/carts:0.4.8
hostname: carts
restart: always
cap_drop:
- all
cap_add:
- NET_BIND_SERVICE
tmpfs:
- /tmp:rw,noexec,nosuid
environment:

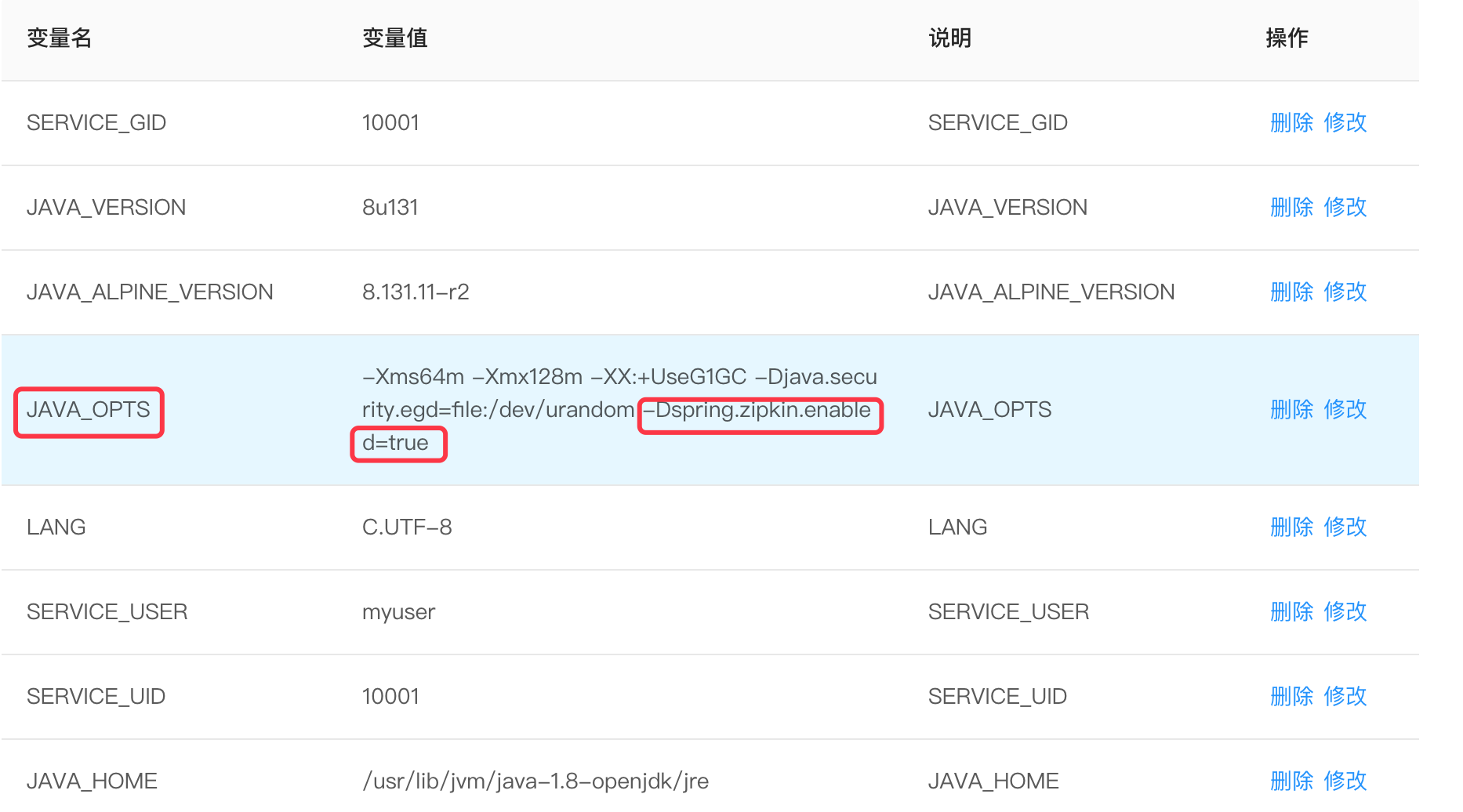

- JAVA_OPTS=-Xms64m -Xmx128m -XX:+UseG1GC -Djava.security.egd=file:/dev/urandom -Dspring.zipkin.enabled=false
ports:
- "80:80"
depends_on:
- carts-db
- zipkin
carts-db:
image: mongo:3.4
hostname: carts-db
restart: always
cap_drop:
- all
cap_add:
- CHOWN
- SETGID
- SETUID
tmpfs:
- /tmp:rw,noexec,nosuid
orders:
image: rilweic/orders
hostname: orders
restart: always
cap_drop:
- all
cap_add:
- NET_BIND_SERVICE
tmpfs:
- /tmp:rw,noexec,nosuid
environment:
- JAVA_OPTS=-Xms64m -Xmx128m -XX:+UseG1GC -Djava.security.egd=file:/dev/urandom -Dspring.zipkin.enabled=false
ports:
- "8848:8848"
depends_on:
- orders-db
- zipkin
- shipping
- carts
- payment
- user
orders-db:
image: mongo:3.4
hostname: orders-db
restart: always
cap_drop:
- all
cap_add:
- CHOWN
- SETGID
- SETUID
tmpfs:
- /tmp:rw,noexec,nosuid
shipping:
image: rainbond/shipping:0.4.8
hostname: shipping
restart: always
cap_drop:
- all
cap_add:
- NET_BIND_SERVICE
tmpfs:
- /tmp:rw,noexec,nosuid
environment:
- JAVA_OPTS=-Xms64m -Xmx128m -XX:+UseG1GC -Djava.security.egd=file:/dev/urandom -Dspring.zipkin.enabled=false
ports:
- "8080:8080"
depends_on:
- rabbitmq
- zipkin
queue-master:
image: weaveworksdemos/queue-master:0.3.1
hostname: queue-master
restart: always
cap_drop:
- all
cap_add:
- NET_BIND_SERVICE
tmpfs:
- /tmp:rw,noexec,nosuid
depends_on:
- rabbitmq
rabbitmq:
image: rabbitmq:3.6.8
hostname: rabbitmq
restart: always
cap_drop:
- all
cap_add:
- CHOWN
- SETGID
- SETUID
- DAC_OVERRIDE
payment:
image: weaveworksdemos/payment:0.4.3
hostname: payment
restart: always
cap_drop:
- all
cap_add:
- NET_BIND_SERVICE
depends_on:
- zipkin
user:
image: weaveworksdemos/user:0.4.4
hostname: user
restart: always
cap_drop:
- all
cap_add:
- NET_BIND_SERVICE

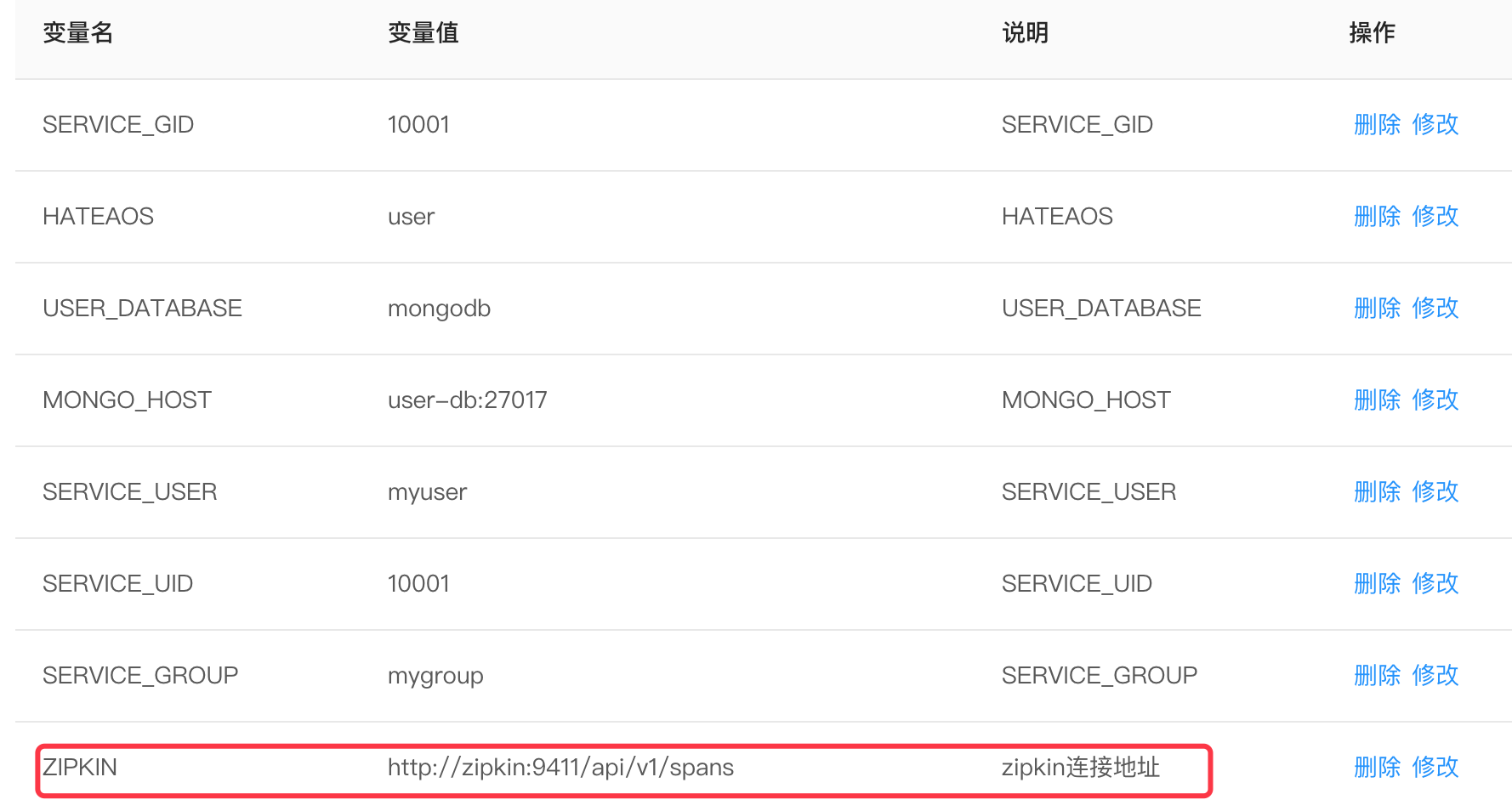

environment:
- MONGO_HOST=user-db:27017
depends_on:
- user-db
- zipkin
user-db:
image: weaveworksdemos/user-db:0.4.0
hostname: user-db
restart: always
cap_drop:
- all
cap_add:
- CHOWN
- SETGID
- SETUID
tmpfs:
- /tmp:rw,noexec,nosuid

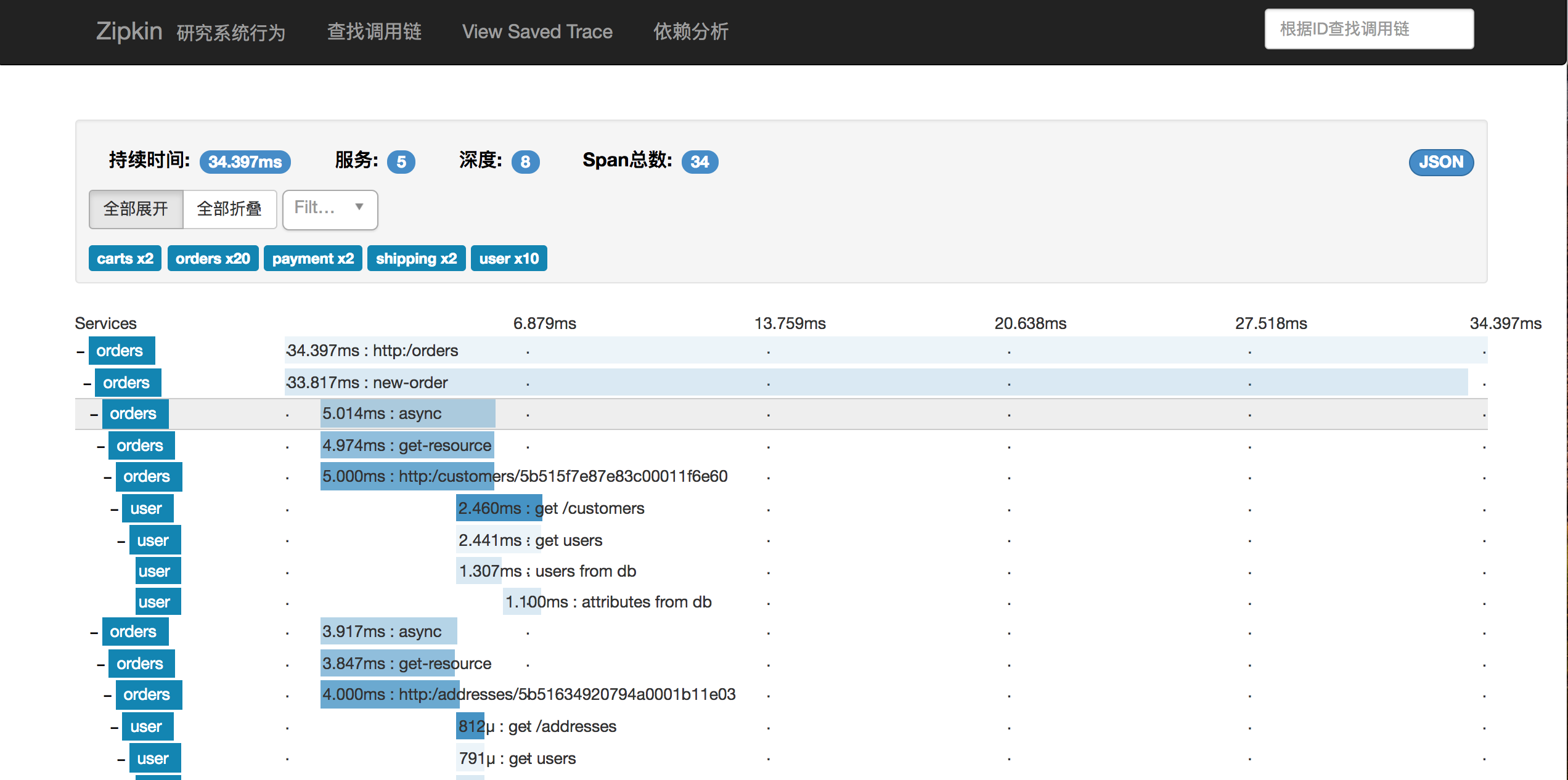

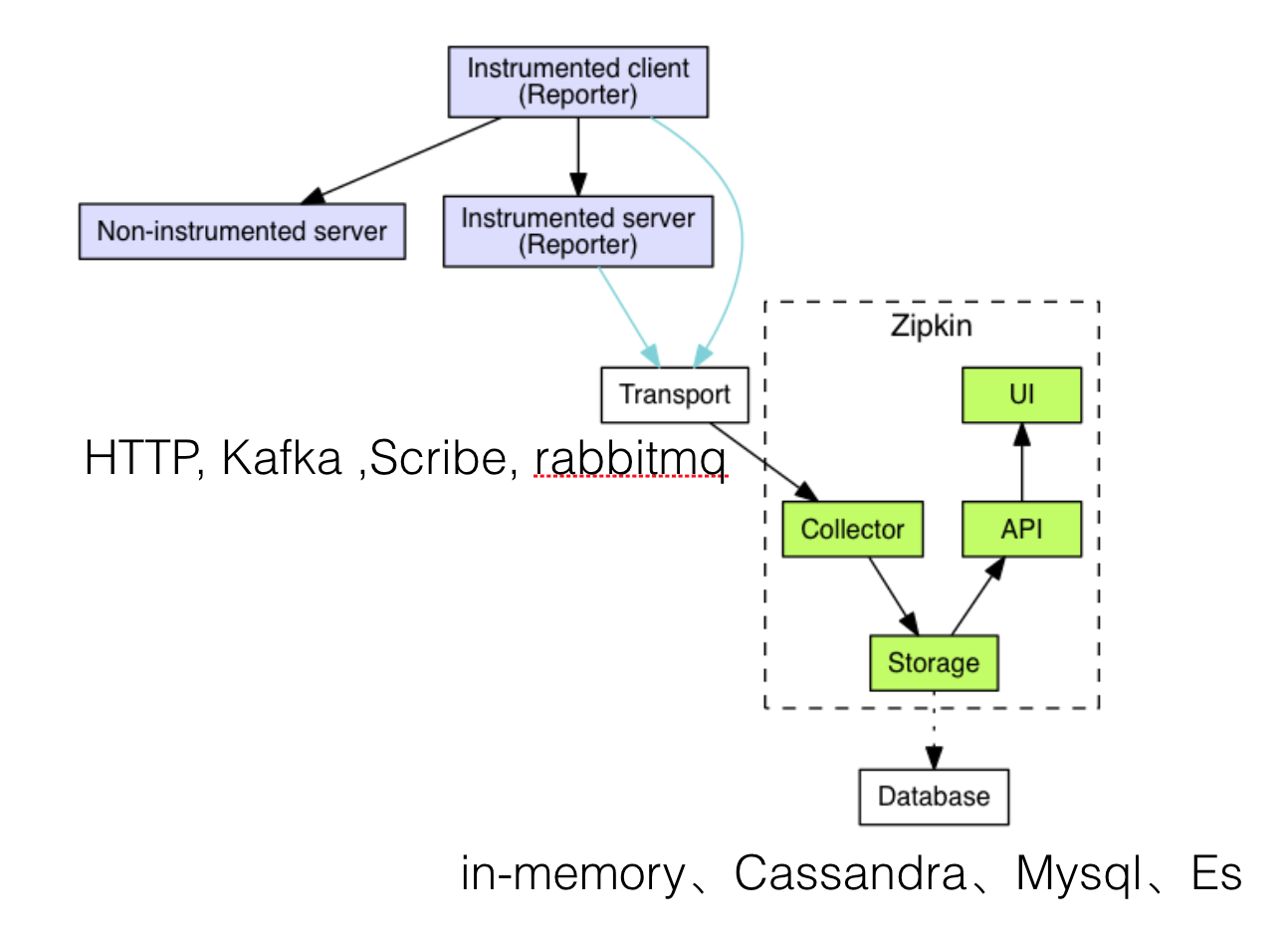

zipkin:
image: openzipkin/zipkin
hostname: zipkin
restart: always
cap_drop:
- all
cap_add:
- CHOWN
- SETGID
- SETUID
tmpfs:
- /tmp:rw,noexec,nosuid
environment:
- reschedule=on-node-failure
ports:
- "9411:9411"

ALTER TABLE zipkin_spans ADD UNIQUE KEY(`trace_id_high`, `trace_id`, `id`) COMMENT 'ignore insert on duplicate';
ALTER TABLE zipkin_spans ADD INDEX(`trace_id_high`, `trace_id`, `id`) COMMENT 'for joining with zipkin_annotations';
ALTER TABLE zipkin_spans ADD INDEX(`trace_id_high`, `trace_id`) COMMENT 'for getTracesByIds';
ALTER TABLE zipkin_spans ADD INDEX(`name`) COMMENT 'for getTraces and getSpanNames';
ALTER TABLE zipkin_spans ADD INDEX(`start_ts`) COMMENT 'for getTraces ordering and range';

CREATE TABLE IF NOT EXISTS zipkin_annotations (
`trace_id_high` BIGINT NOT NULL DEFAULT 0 COMMENT 'If non zero, this means the trace uses 128 bit traceIds instead of 64 bit',
`trace_id` BIGINT NOT NULL COMMENT 'coincides with zipkin_spans.trace_id',
`span_id` BIGINT NOT NULL COMMENT 'coincides with zipkin_spans.id',
`a_key` VARCHAR(255) NOT NULL COMMENT 'BinaryAnnotation.key or Annotation.value if type == -1',
`a_value` BLOB COMMENT 'BinaryAnnotation.value(), which must be smaller than 64KB',
`a_type` INT NOT NULL COMMENT 'BinaryAnnotation.type() or -1 if Annotation',
`a_timestamp` BIGINT COMMENT 'Used to implement TTL; Annotation.timestamp or zipkin_spans.timestamp',
`endpoint_ipv4` INT COMMENT 'Null when Binary/Annotation.endpoint is null',
`endpoint_ipv6` BINARY(16) COMMENT 'Null when Binary/Annotation.endpoint is null, or no IPv6 address',
`endpoint_port` SMALLINT COMMENT 'Null when Binary/Annotation.endpoint is null',
`endpoint_service_name` VARCHAR(255) COMMENT 'Null when Binary/Annotation.endpoint is null'
) ENGINE=InnoDB ROW_FORMAT=COMPRESSED CHARACTER SET=utf8 COLLATE utf8_general_ci;

ALTER TABLE zipkin_annotations ADD UNIQUE KEY(`trace_id_high`, `trace_id`, `span_id`, `a_key`, `a_timestamp`) COMMENT 'Ignore insert on duplicate';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id_high`, `trace_id`, `span_id`) COMMENT 'for joining with zipkin_spans';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id_high`, `trace_id`) COMMENT 'for getTraces/ByIds';
ALTER TABLE zipkin_annotations ADD INDEX(`endpoint_service_name`) COMMENT 'for getTraces and getServiceNames';
ALTER TABLE zipkin_annotations ADD INDEX(`a_type`) COMMENT 'for getTraces';
ALTER TABLE zipkin_annotations ADD INDEX(`a_key`) COMMENT 'for getTraces';
ALTER TABLE zipkin_annotations ADD INDEX(`trace_id`, `span_id`, `a_key`) COMMENT 'for dependencies job';

CREATE TABLE IF NOT EXISTS zipkin_dependencies (
`day` DATE NOT NULL,
`parent` VARCHAR(255) NOT NULL,
`child` VARCHAR(255) NOT NULL,
`call_count` BIGINT,
`error_count` BIGINT
) ENGINE=InnoDB ROW_FORMAT=COMPRESSED CHARACTER SET=utf8 COLLATE utf8_general_ci;

ALTER TABLE zipkin_dependencies ADD UNIQUE KEY(`day`, `parent`, `child`);
