override def preStart() {
    logInfo("Starting Spark master at " + masterUrl)
    ...
    //persistenceEngine是持久化Worker，Driver和Application信息的，这样在Master重新启动时不会影响
    //已经提交Job的运行
    persistenceEngine = RECOVERY_MODE match {
      case "ZOOKEEPER" =>
        logInfo("Persisting recovery state to ZooKeeper")
        new ZooKeeperPersistenceEngine(SerializationExtension(context.system), conf)
      case "FILESYSTEM" =>
        logInfo("Persisting recovery state to directory: " + RECOVERY_DIR)
        new FileSystemPersistenceEngine(RECOVERY_DIR, SerializationExtension(context.system))
      case _ =>
        new BlackHolePersistenceEngine()
    }
    //leaderElectionAgent负责Leader的选取。
    leaderElectionAgent = RECOVERY_MODE match {
        case "ZOOKEEPER" =>
          context.actorOf(Props(classOf[ZooKeeperLeaderElectionAgent], self, masterUrl, conf))
        case _ => // 仅仅有一个Master的集群，那么当前的Master就是Active的
          context.actorOf(Props(classOf[MonarchyLeaderAgent], self))
      }
  }

val RECOVERY_MODE = conf.get("spark.deploy.recoveryMode", "NONE")

private[spark] class BlackHolePersistenceEngine extends PersistenceEngine {
  override def addApplication(app: ApplicationInfo) {}
  override def removeApplication(app: ApplicationInfo) {}
  override def addWorker(worker: WorkerInfo) {}
  override def removeWorker(worker: WorkerInfo) {}
  override def addDriver(driver: DriverInfo) {}
  override def removeDriver(driver: DriverInfo) {}

  override def readPersistedData() = (Nil, Nil, Nil)
}

class ZooKeeperPersistenceEngine(serialization: Serialization, conf: SparkConf)
  extends PersistenceEngine
  with Logging
{
  val WORKING_DIR = conf.get("spark.deploy.zookeeper.dir", "/spark") + "/master_status"
  val zk: CuratorFramework = SparkCuratorUtil.newClient(conf)

  SparkCuratorUtil.mkdir(zk, WORKING_DIR)
  // 将app的信息序列化到文件WORKING_DIR/app_{app.id}中
  override def addApplication(app: ApplicationInfo) {
    serializeIntoFile(WORKING_DIR + "/app_" + app.id, app)
  }

  override def removeApplication(app: ApplicationInfo) {
    zk.delete().forPath(WORKING_DIR + "/app_" + app.id)
  }

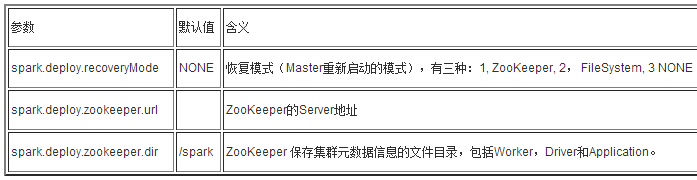

spark.deploy.recoveryMode=ZOOKEEPER
spark.deploy.zookeeper.url=zk_server_1:2181,zk_server_2:2181
spark.deploy.zookeeper.dir=/dir
// OR 通过一下方式设置
export SPARK_DAEMON_JAVA_OPTS="-Dspark.deploy.recoveryMode=ZOOKEEPER "
export SPARK_DAEMON_JAVA_OPTS="${SPARK_DAEMON_JAVA_OPTS}
-Dspark.deploy.zookeeper.url=zk_server1:2181,zk_server_2:2181"

/**
     * Create a new client
     *
     *
     * @param connectString list of servers to connect to
     * @param sessionTimeoutMs session timeout
     * @param connectionTimeoutMs connection timeout
     * @param retryPolicy retry policy to use
     * @return client
     */
    public static CuratorFramework newClient
(String connectString, int sessionTimeoutMs, int connectionTimeoutMs, RetryPolicy retryPolicy)
    {
        return builder().
            connectString(connectString).
            sessionTimeoutMs(sessionTimeoutMs).
            connectionTimeoutMs(connectionTimeoutMs).
            retryPolicy(retryPolicy).
            build();
    }

/**
* LeaderLatchListener can be used to be notified asynchronously about when the state of the LeaderLatch has changed.
*
* Note that just because you are in the middle of one of these method calls, it does not necessarily mean that
* hasLeadership() is the corresponding true/false value. It is possible for the state to change behind the scenes
* before these methods get called. The contract is that if that happens, you should see another call to the other
* method pretty quickly.
*/
public interface LeaderLatchListener
{
  /**
* This is called when the LeaderLatch's state goes from hasLeadership = false to hasLeadership = true.
*
* Note that it is possible that by the time this method call happens, hasLeadership has fallen back to false. If
* this occurs, you can expect {@link #notLeader()} to also be called.
*/
  public void isLeader();

  /**
* This is called when the LeaderLatch's state goes from hasLeadership = true to hasLeadership = false.
*
* Note that it is possible that by the time this method call happens, hasLeadership has become true. If
* this occurs, you can expect {@link #isLeader()} to also be called.
*/
  public void notLeader();
}

public class LeaderLatch implements Closeable
{
    private final Logger log = LoggerFactory.getLogger(getClass());
    private final CuratorFramework client;
    private final String latchPath;
    private final String id;
    private final AtomicReference<State> state = new AtomicReference<State>(State.LATENT);
    private final AtomicBoolean hasLeadership = new AtomicBoolean(false);
    private final AtomicReference<String> ourPath = new AtomicReference<String>();
    private final ListenerContainer<LeaderLatchListener> listeners = new ListenerContainer<LeaderLatchListener>();
    private final CloseMode closeMode;
    private final AtomicReference<Future<?>> startTask = new AtomicReference<Future<?>>();
.
.
.
    /**
     * Attaches a listener to this LeaderLatch
     * <p/>
     * Attaching the same listener multiple times is a noop from the second time on.
     * <p/>
     * All methods for the listener are run using the provided Executor.  It is common to pass in a single-threaded
     * executor so that you can be certain that listener methods are called in sequence, but if you are fine with
     * them being called out of order you are welcome to use multiple threads.
     *
     * @param listener the listener to attach
     */
    public void addListener(LeaderLatchListener listener)
    {
        listeners.addListener(listener);
    }

private[spark] class ZooKeeperLeaderElectionAgent(val masterActor: ActorRef,
    masterUrl: String, conf: SparkConf)
  extends LeaderElectionAgent with LeaderLatchListener with Logging  {
  val WORKING_DIR = conf.get("spark.deploy.zookeeper.dir", "/spark") + "/leader_election"
  // zk是通过CuratorFrameworkFactory创建的ZooKeeper实例
  private var zk: CuratorFramework = _
  // leaderLatch：Curator负责选出Leader。
  private var leaderLatch: LeaderLatch = _
  private var status = LeadershipStatus.NOT_LEADER

  override def preStart() {

    logInfo("Starting ZooKeeper LeaderElection agent")
    zk = SparkCuratorUtil.newClient(conf)
    leaderLatch = new LeaderLatch(zk, WORKING_DIR)
    leaderLatch.addListener(this)

    leaderLatch.start()
  }

override def isLeader() {
  synchronized {
    // could have lost leadership by now.
    //现在leadership可能已经被剥夺了。。详情参见Curator的实现。
    if (!leaderLatch.hasLeadership) {
      return
    }

    logInfo("We have gained leadership")
    updateLeadershipStatus(true)
  }
}

override def notLeader() {
  synchronized {
    // 现在可能赋予leadership了。详情参见Curator的实现。
    if (leaderLatch.hasLeadership) {
      return
    }

    logInfo("We have lost leadership")
    updateLeadershipStatus(false)
  }
}

def updateLeadershipStatus(isLeader: Boolean) {
    if (isLeader && status == LeadershipStatus.NOT_LEADER) {
      status = LeadershipStatus.LEADER
      masterActor ! ElectedLeader
    } else if (!isLeader && status == LeadershipStatus.LEADER) {
      status = LeadershipStatus.NOT_LEADER
      masterActor ! RevokedLeadership
    }
  }
