dubbo 的使用

作者：liuc0317 来源：CSDN 发布于 2015-12-28

次浏览

Dubbo是[3] 阿里巴巴公司开源的一个高性能优秀的服务框架，使得应用可通过高性能的 RPC 实现服务的输

出和输入功能，可以和 [4] Spring框架无缝集成。

主要核心部件

Remoting: 网络通信框架，实现了 sync-over-async 和 request-response 消息机制.

RPC: 一个远程过程调用的抽象，支持负载均衡、容灾和集群功能

Registry: 服务目录框架用于服务的注册和服务事件发布和订阅

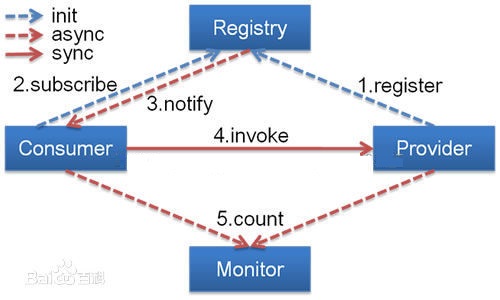

工作原理

Provider

暴露服务方称之为“服务提供者”。

Consumer

调用远程服务方称之为“服务消费者”。

Registry

服务注册与发现的中心目录服务称之为“服务注册中心”。

Monitor

统计服务的调用次数和调用时间的日志服务称之为“服务监控中心”。

(1) 连通性：

注册中心负责服务地址的注册与查找，相当于目录服务，服务提供者和消费者只在启动时与注册中心交互，注册中心不转发请求，压力较小

监控中心负责统计各服务调用次数，调用时间等，统计先在内存汇总后每分钟一次发送到监控中心服务器，并以报表展示

服务提供者向注册中心注册其提供的服务，并汇报调用时间到监控中心，此时间不包含网络开销

服务消费者向注册中心获取服务提供者地址列表，并根据负载算法直接调用提供者，同时汇报调用时间到监控中心，此时间包含网络开销

注册中心，服务提供者，服务消费者三者之间均为长连接，监控中心除外

注册中心通过长连接感知服务提供者的存在，服务提供者宕机，注册中心将立即推送事件通知消费者

注册中心和监控中心全部宕机，不影响已运行的提供者和消费者，消费者在本地缓存了提供者列表

注册中心和监控中心都是可选的，服务消费者可以直连服务提供者

(2) 健状性：

监控中心宕掉不影响使用，只是丢失部分采样数据

数据库宕掉后，注册中心仍能通过缓存提供服务列表查询，但不能注册新服务

注册中心对等集群，任意一台宕掉后，将自动切换到另一台

注册中心全部宕掉后，服务提供者和服务消费者仍能通过本地缓存通讯

服务提供者无状态，任意一台宕掉后，不影响使用

服务提供者全部宕掉后，服务消费者应用将无法使用，并无限次重连等待服务提供者恢复

(3) 伸缩性：

注册中心为对等集群，可动态增加机器部署实例，所有客户端将自动发现新的注册中心

服务提供者无状态，可动态增加机器部署实例，注册中心将推送新的服务提供者信息给消费者

以下是需要的ZooKeeper 安装，和管理页面的安装，测试的提供者和消费者。

所需的文件下载地址：http://download.csdn.net/detail/liuc0317/8314333

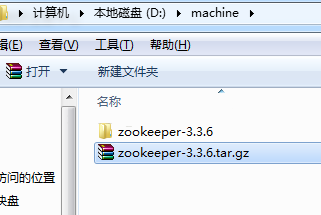

1. 我在windows 下安装的zooKeeper ，所下载的文件 zookeeper-3.3.6.tar.gz 解压到一个文件夹下。如图

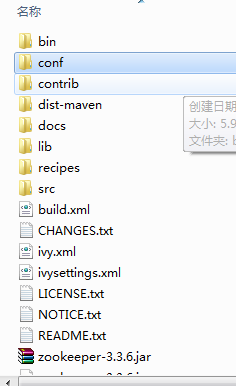

目录如图：

进入conf 修改配置文件 zoo.cfg

# The number of milliseconds of each tick  心跳间隔 毫秒每次
tickTime=2000
# The number of ticks that the initial
# synchronization phase can take
initLimit=10
# The number of ticks that can pass between
# sending a request and getting anacknowledgement
syncLimit=5
# the directory where the snapshot isstored.  //镜像数据位置
dataDir=D:\\data\\zookeeper
#日志位置
dataLogDir=D:\\logs\\zookeeper
# the port at which the clients willconnect  客户端连接的端口
clientPort=2181

修改了配置文件dataLogDir 的配置，这个配置地址需要人为的去创建，要不然会报错。这样，配置就基本完成了。

第二步：进入bin 目录，然后在 dos 下运行。

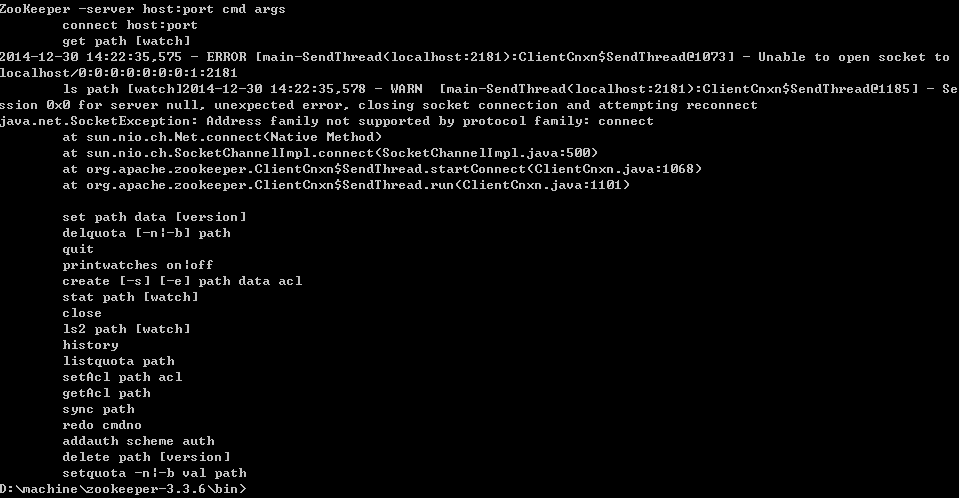

这样 zookeeper 就启动了，同时可以使用zookeeper 自带的客户端查看一下。如图：

编写服务的提供者和消费者如图：

DemoService.java

package com.unj.dubbotest.provider;

import java.util.List;

public interface DemoService {

    String sayHello(String name);

    public List getUsers();

}

DemoServiceImp.java

package com.unj.dubbotest.provider.impl;

import java.util.ArrayList;
import java.util.List;

import com.unj.dubbotest.provider.DemoService;

public class DemoServiceImpl implements DemoService {

    public String sayHello(String name) {
        return "Hello " + name;
    }

    public List getUsers() {
        List list = new ArrayList();
        User u1 = new User();
        u1.setName("jack");
        u1.setAge(20);
        u1.setSex("m");

        User u2 = new User();
        u2.setName("tom");
        u2.setAge(21);
        u2.setSex("m");

        User u3 = new User();
        u3.setName("rose");
        u3.setAge(19);
        u3.setSex("w");

        list.add(u1);
        list.add(u2);
        list.add(u3);
        return list;
    }
}

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://code.alibabatech.com/schema/dubbo
        http://code.alibabatech.com/schema/dubbo/dubbo.xsd
        ">

    <!-- 具体的实现bean -->
    <bean id="demoService" class="com.unj.dubbotest.provider.impl.DemoServiceImpl" />

    <!-- 提供方应用信息，用于计算依赖关系 -->
    <dubbo:application name="xixi_provider" />

    <!-- 使用multicast广播注册中心暴露服务地址 <dubbo:registry address="multicast://224.5.6.7:1234"
        /> -->

    <!-- 使用zookeeper注册中心暴露服务地址 -->
    <dubbo:registry address="zookeeper://10.20.5.106:2181" />

    <!-- 用dubbo协议在20880端口暴露服务 -->
    <dubbo:protocol name="dubbo" port="20880" />

    <!-- 声明需要暴露的服务接口 -->
    <dubbo:service interface="com.unj.dubbotest.provider.DemoService"
        ref="demoService" />

</beans>

Provider.java

package com.unj.dubbotest.provider.impl;

import org.springframework.context.support.ClassPathXmlApplicationContext;

public class Provider {

    public static void main(String[] args) throws Exception {
        ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(
                new String[] { "applicationContext.xml" });
        context.start();
        System.in.read(); // 为保证服务一直开着，利用输入流的阻塞来模拟
    }
}

运行main 方法：日志如下：

2014-12-30 15:45:46,349 INFO [org.springframework.context.support.ClassPathXmlApplicationContext]
- Refreshing org.springframework.context.support.ClassPathXmlApplicationContext@dd87b2: display name
[org.springframework.context.support.ClassPathXmlApplicationContext@dd87b2];
startup date [Tue Dec 30 15:45:46 CST 2014]; root of context hierarchy
2014-12-30 15:45:46,410 INFO [org.springframework.beans.factory.xml.XmlBeanDefinitionReader]
- Loading XML bean definitions from class path resource [applicationContext.xml]
2014-12-30 15:45:46,554 INFO [com.alibaba.dubbo.common.logger.LoggerFactory]
- using logger: com.alibaba.dubbo.common.logger.log4j.Log4jLoggerAdapter
2014-12-30 15:45:46,585 INFO [org.springframework.context.support.ClassPathXmlApplicationContext]
 - Bean factory for application context [org.springframework.context.support.ClassPathXmlApplicationContext@dd87b2]:
org.springframework.beans.factory.support.DefaultListableBeanFactory@1319c
2014-12-30 15:45:46,831 INFO [org.springframework.beans.factory.support.DefaultListableBeanFactory]
 - Pre-instantiating singletons in org.springframework.beans.factory.support.DefaultListableBeanFactory@1319c: defining beans
 [demoService,xixi_provider,com.alibaba.dubbo.config.RegistryConfig,dubbo,
com.unj.dubbotest.provider.DemoService]; root of factory hierarchy
2014-12-30 15:45:46,834 INFO [com.alibaba.dubbo.config.AbstractConfig]
-  [DUBBO] The service ready on spring started. service:
com.unj.dubbotest.provider.DemoService, dubbo version: 2.5.2, current host: 127.0.0.1
2014-12-30 15:45:46,992 INFO [com.alibaba.dubbo.config.AbstractConfig]
-  [DUBBO] Export dubbo service com.unj.dubbotest.provider.DemoService to local registry,
 dubbo version: 2.5.2, current host: 127.0.0.1
2014-12-30 15:45:46,992 INFO [com.alibaba.dubbo.config.AbstractConfig]
-  [DUBBO] Export dubbo service com.unj.dubbotest.provider.DemoService to url
 dubbo://10.20.5.106:20880/com.unj.dubbotest.provider.DemoService?anyhost=true&application
=xixi_provider&dubbo=2.5.2&interface=com.unj.dubbotest.provider.DemoService&methods
=sayHello,getUsers&pid=12192&side=provider×tamp=1419925546891, dubbo version: 2.5.2,
current host: 127.0.0.1  2014-12-30 15:45:46,992 INFO [com.alibaba.dubbo.config.AbstractConfig]
-  [DUBBO] Register dubbo service com.unj.dubbotest.provider.DemoService url
 dubbo://10.20.5.106:20880/com.unj.dubbotest.provider.DemoService?anyhost
=true&application=xixi_provider&dubbo=2.5.2&interface=com.unj.dubbotest.provider.DemoService&methods
=sayHello,getUsers&pid=12192&side=provider×tamp=1419925546891 to
registry registry://10.20.5.106:2181/com.alibaba.dubbo.registry.RegistryService?application
=xixi_provider&dubbo=2.5.2&pid=12192&registry=zookeeper×tamp=1419925546845,
dubbo version: 2.5.2, current host: 127.0.0.1
2014-12-30 15:45:47,161 INFO [com.alibaba.dubbo.remoting.transport.AbstractServer]
-  [DUBBO] Start NettyServer bind /0.0.0.0:20880, export /10.20.5.106:20880,
 dubbo version: 2.5.2, current host: 127.0.0.1
2014-12-30 15:45:47,183 INFO [com.alibaba.dubbo.registry.zookeeper.ZookeeperRegistry]
-  [DUBBO] Load registry store file C:\Users\lenovo\.dubbo\dubbo-registry-10.20.5.106.cache,
 data: {com.unj.dubbotest.provider.DemoService
=empty://10.20.5.106/com.unj.dubbotest.provider.DemoService?application
=hehe_consumer&category=providers&dubbo
=2.5.2&interface=com.unj.dubbotest.provider.DemoService&methods
=sayHello,getUsers&pid=21892&side=consumer×tamp
=1419925451328 empty://10.20.5.106/com.unj.dubbotest.provider.DemoService?application
=hehe_consumer&category=configurators&dubbo=2.5.2&interface
=com.unj.dubbotest.provider.DemoService&methods=sayHello,getUsers&pid
=21892&side=consumer×tamp
=1419925451328 empty://10.20.5.106/com.unj.dubbotest.provider.DemoService?application
=hehe_consumer&category=routers&dubbo
=2.5.2&interface=com.unj.dubbotest.provider.DemoService&methods
=sayHello,getUsers&pid=21892&side
=consumer×tamp=1419925451328}, dubbo version: 2.5.2, current host: 127.0.0.1
2014-12-30 15:45:47,198 INFO [org.I0Itec.zkclient.ZkEventThread]
- Starting ZkClient event thread.
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:zookeeper.version=3.4.5-1392090, built on 09/30/2012 17:52 GMT
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:host.name=10.20.5.106
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:java.version=1.6.0_30
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:java.vendor=Sun Microsystems Inc.
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:java.home=D:\soft\UCFSOFTDOC\soft\JDK\Java_JDK1.6_32bit\Java\jdk1.6.0_30\jre
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:java.class.path
=C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\classes;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\commons-lang-2.3.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\commons-logging-1.1.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\commons-logging-api-1.1.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\dubbo-2.5.2.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\dubbo-admin-2.5.2-sources.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\dubbo-demo-consumer-2.5.2-sources.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\dubbo-demo-provider-2.5.2-sources.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\dubbo-registry-simple-2.5.2-sources.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\javassist-3.4.GA.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\jline-0.9.94.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\netty-3.2.2.Final.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\netty-3.2.5.Final.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-aop.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-beans.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-context-support.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-context.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-core.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-jdbc.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-jms.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-orm.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-test.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-tx.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-web.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-webmvc-portlet.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-webmvc-struts.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring-webmvc.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\spring.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\zkclient-0.1.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\zookeeper-3.4.5.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\log4j-1.2.12.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\slf4j-api-1.6.1.jar;
C:\Users\lenovo\Downloads\provider\dubboprovider\WebRoot\WEB-INF\lib\slf4j-log4j12-1.6.1.jar
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:java.library.path=D:\soft\UCFSOFTDOC\soft\JDK\Java_JDK1.6_32bit\Java\jdk1.6.0_30\bin;
C:\Windows\Sun\Java\bin;C:\Windows\system32;C:\Windows;
C:/Program Files (x86)/Java/jre7/bin/client;
C:/Program Files (x86)/Java/jre7/bin;C:/Program Files (x86)/Java/jre7/lib/i386;
C:\Program Files (x86)\Intel\iCLS Client\;C:\Program Files\Intel\iCLS Client\;
C:\Windows\system32;C:\Windows;C:\Windows\System32\Wbem;
C:\Windows\System32\WindowsPowerShell\v1.0\;C:\Program Files (x86)\Intel\OpenCL SDK\3.0\bin\x86;
C:\Program Files (x86)\Intel\OpenCL SDK\3.0\bin\x64;
C:\Program Files\Intel\Intel(R) Management Engine Components\DAL;
C:\Program Files\Intel\Intel(R) Management Engine Components\IPT;
C:\Program Files (x86)\Intel\Intel(R) Management Engine Components\DAL;
C:\Program Files (x86)\Intel\Intel(R) Management Engine Components\IPT;
D:\soft\UCFSOFTDOC\soft\JDK\Java_JDK1.6_32bit\Java\jdk1.6.0_30\bin;
D:\Program Files\TortoiseSVN\bin;
D:\soft\UCFSOFTDOC\soft\Maven\apache-maven-3.1.1_20140127\apache-maven-3.1.1\bin;
C:\Program Files (x86)\OpenVPN\bin;D:\soft\UCFSOFTDOC\soft\IDE\eclipse_JAVAEE;;.
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:java.io.tmpdir=C:\Users\lenovo\AppData\Local\Temp\
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper]
- Client environment:java.compiler=<NA>
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper] - Client environment:os.name=Windows 7
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper] - Client environment:os.arch=x86
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper] - Client environment:os.version=6.1
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper] - Client environment:user.name=lenovo
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper] - Client environment:user.home=C:\Users\lenovo
2014-12-30 15:45:47,217 INFO [org.apache.zookeeper.ZooKeeper] - Client environment:user.dir=
C:\Users\lenovo\Downloads\provider\dubboprovider
2014-12-30 15:45:47,218 INFO [org.apache.zookeeper.ZooKeeper]
- Initiating client connection, connectString=10.20.5.106:2181 sessionTimeout
=30000 watcher=org.I0Itec.zkclient.ZkClient@2acc57
2014-12-30 15:45:47,239 INFO [org.apache.zookeeper.ClientCnxn]
- Opening socket connection to server 10.20.5.106/10.20.5.106:2181. Will
not attempt to authenticate using SASL (无法定位登录配置)
2014-12-30 15:45:47,240 INFO [org.apache.zookeeper.ClientCnxn]
- Socket connection established to 10.20.5.106/10.20.5.106:2181, initiating session
2014-12-30 15:45:47,306 WARN [org.apache.zookeeper.ClientCnxnSocket]
- Connected to an old server; r-o mode will be unavailable
2014-12-30 15:45:47,306 INFO [org.apache.zookeeper.ClientCnxn]
- Session establishment complete on server 10.20.5.106/10.20.5.106:2181,
sessionid = 0x14a9a27ba100000, negotiated timeout = 30000
2014-12-30 15:45:47,309 INFO [org.I0Itec.zkclient.ZkClient]
- zookeeper state changed (SyncConnected)
2014-12-30 15:45:47,312 INFO [com.alibaba.dubbo.registry.zookeeper.ZookeeperRegistry]
-  [DUBBO] Register: dubbo://10.20.5.106:20880/com.unj.dubbotest.provider.DemoService?anyhost=true&application
=xixi_provider&dubbo=2.5.2&interface=com.unj.dubbotest.provider.DemoService&methods
=sayHello,getUsers&pid=12192&side=provider×tamp=1419925546891, dubbo version: 2.5.2, current host: 127.0.0.1
2014-12-30 15:45:47,446 INFO [com.alibaba.dubbo.registry.zookeeper.ZookeeperRegistry]
-  [DUBBO] Subscribe: provider://10.20.5.106:20880/com.unj.dubbotest.provider.DemoService?anyhost=true&application
=xixi_provider&category=configurators&check=false&dubbo=2.5.2&interface
=com.unj.dubbotest.provider.DemoService&methods=sayHello,getUsers&pid
=12192&side=provider×tamp=1419925546891, dubbo version: 2.5.2, current host: 127.0.0.1
2014-12-30 15:45:47,559 INFO [com.alibaba.dubbo.registry.zookeeper.ZookeeperRegistry]
-  [DUBBO] Notify urls for subscribe url provider://10.20.5.106:20880/com.unj.dubbotest.provider.DemoService?anyhost
=true&application=xixi_provider&category=configurators&check=false&dubbo=2.5.2&interface
=com.unj.dubbotest.provider.DemoService&methods=sayHello,getUsers&pid=12192&side
=provider×tamp=1419925546891, urls: [empty://10.20.5.106:20880/com.unj.dubbotest.provider.DemoService?anyhost
=true&application=xixi_provider&category=configurators&check=false&dubbo=2.5.2&interface
=com.unj.dubbotest.provider.DemoService&methods=sayHello,getUsers&pid=12192&side
=provider×tamp=1419925546891], dubbo version: 2.5.2, current host: 127.0.0.1

这样就在 zookeeper 的控制页面中就会查询到此服务如图：

编写服务的消费者项目如图：

DemoService.java 这个服务提供者提供的服务类，在实际开发中，需要提供者把这个类，打成一个jar 包提供给调用者。

package com.unj.dubbotest.provider;

import java.util.List;

public interface DemoService {

    String sayHello(String name);

    public List getUsers();

}

Consumer.java

package com.alibaba.dubbo.demo.pp;

import java.util.List;

import org.springframework.context.support.ClassPathXmlApplicationContext;

import com.unj.dubbotest.provider.DemoService;

public class Consumer {

    public static void main(String[] args) throws Exception {
        ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(
                new String[] { "applicationContext.xml" });
        context.start();

        DemoService demoService = (DemoService) context.getBean("demoService");
        String hello = demoService.sayHello("tom");
        System.out.println(hello);

        List list = demoService.getUsers();
        if (list != null && list.size() > 0) {
            for (int i = 0; i < list.size(); i++) {
                System.out.println(list.get(i));
            }
        }
        System.in.read();
    }

}

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:dubbo="http://code.alibabatech.com/schema/dubbo"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://code.alibabatech.com/schema/dubbo
        http://code.alibabatech.com/schema/dubbo/dubbo.xsd
        ">

    <!-- 消费方应用名，用于计算依赖关系，不是匹配条件，不要与提供方一样 -->
    <dubbo:application name="hehe_consumer" />

    <!-- 使用zookeeper注册中心暴露服务地址 -->
    <!-- <dubbo:registry address="multicast://224.5.6.7:1234" /> -->
    <dubbo:registry address="zookeeper://10.20.5.106:2181" />

    <!-- 生成远程服务代理，可以像使用本地bean一样使用demoService -->
    <dubbo:reference id="demoService"    interface="com.unj.dubbotest.provider.DemoService" />

</beans>

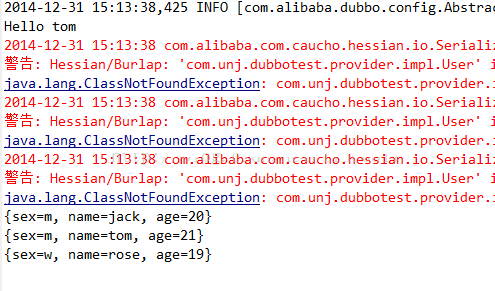

运行的结果：

这样就调用完了。

次浏览

企业架构、TOGAF与ArchiMate概览

架构师之路-如何做好业务建模？

大型网站电商网站架构案例和技术架构的示例

完整的Archimate视点指南（包括示例）
